TMG-SBH60

9' Skid Steer-graafmachine-aanbouwdeel met zwenkarm voor laders van 30-100 pk, 15" bak TMG-SBH60

Product Manual
TMG Industrial 9-ft Skid Steer Swing Backhoe Attachment, 30-100 HP Skid Steers, Italian Hydraulic Control Valves, 15” Bucket, TMG-SBH60
Incoming Summer 2026
TMG-SBH60
€6.223,95 - €6.223,95
€6.223,95
€6.223,95 - €6.223,95
€6.223,95
€6.223,95

Arriving in Summer 2026 Learn More
1-800-870-844

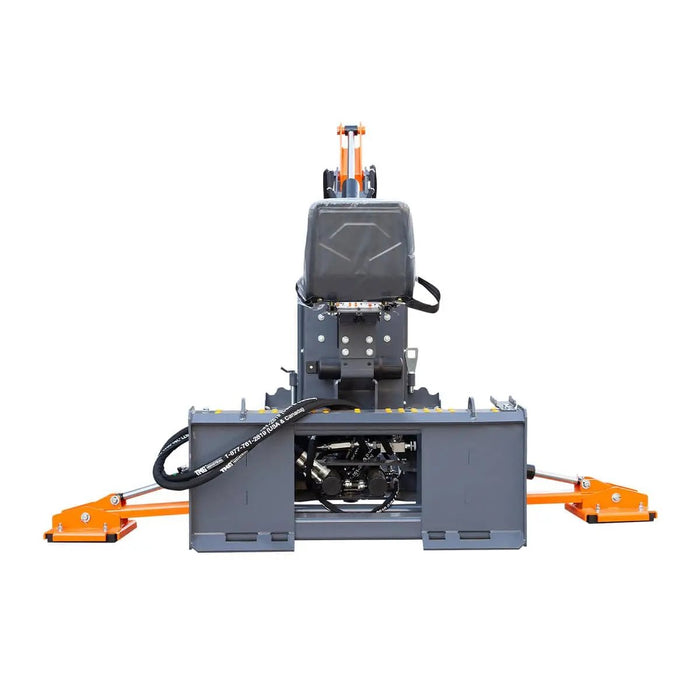

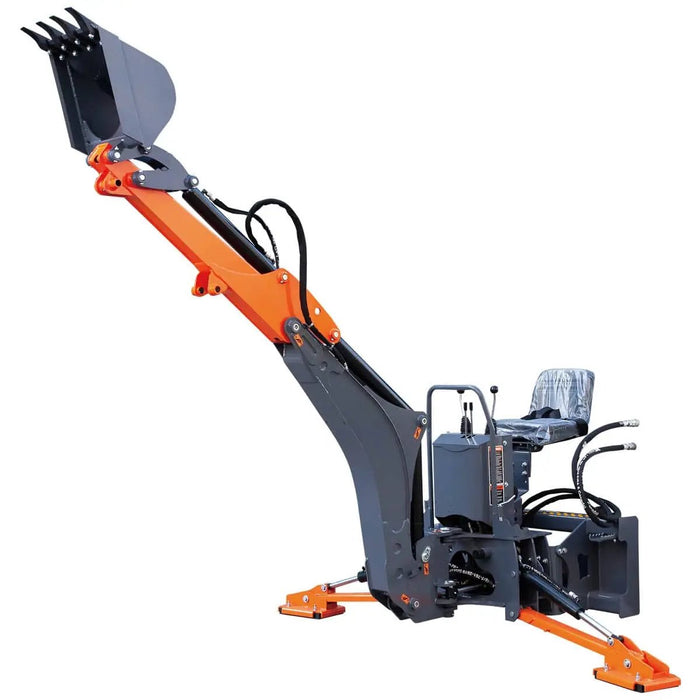

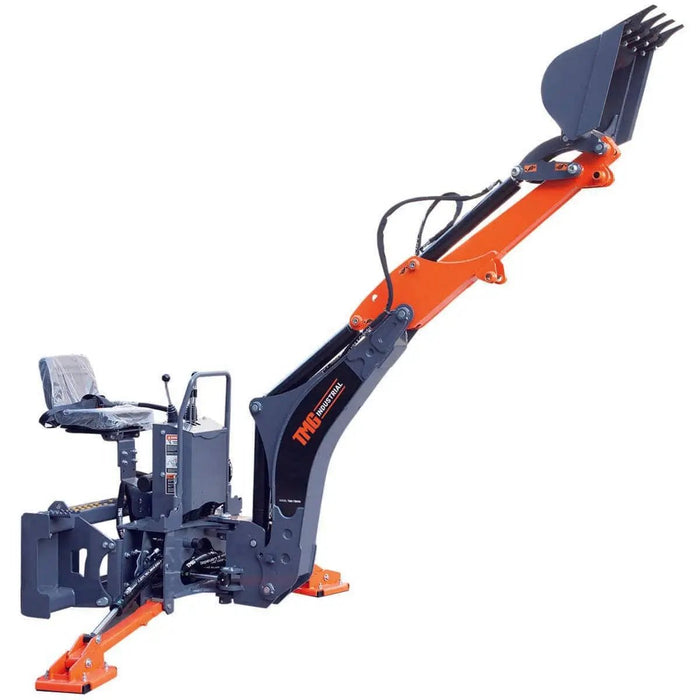

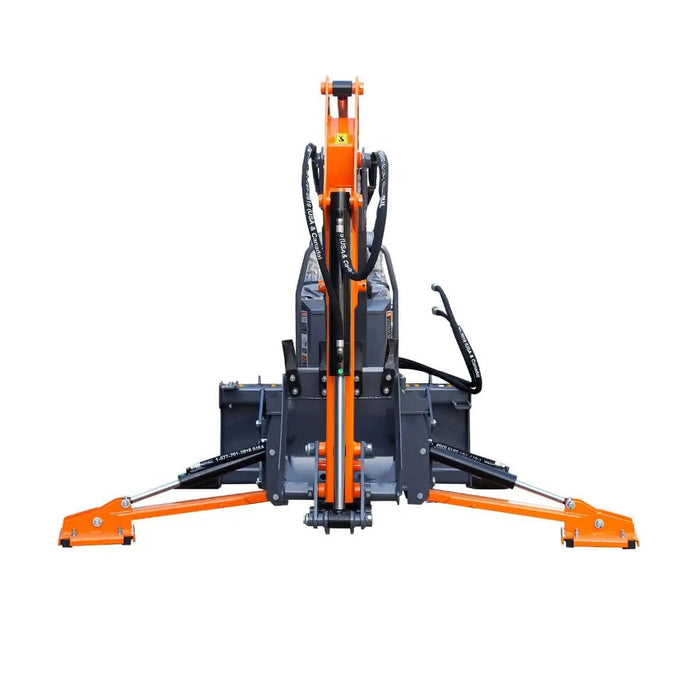

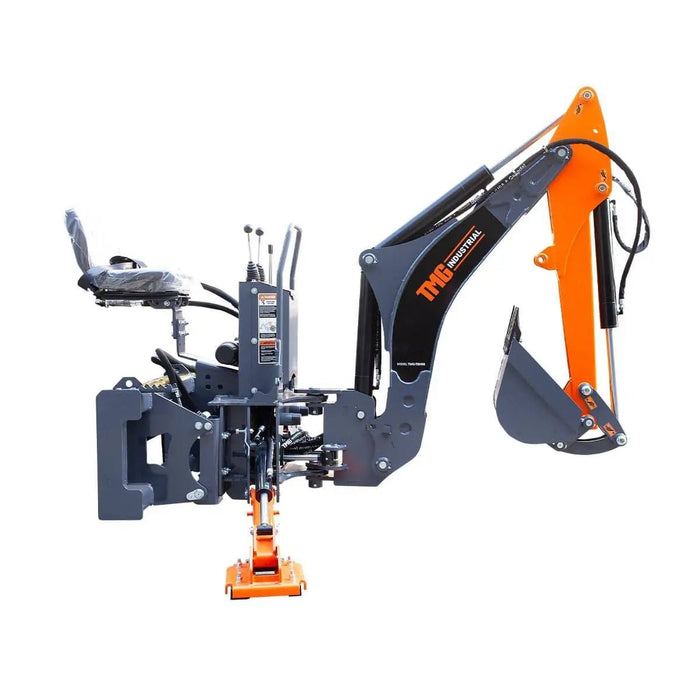

Product Image 1 Product Image 2 Product Image 3

Specifications icon Specifications

  • Skid Steer Power Required: 30–100 HP
  • Mount Type: Universal skid steer mount
  • Hydraulic Flow Rate: 19–26 L/min
  • Hydraulic Pressure: 16 MPa
  • Hydraulic Hoses & Flat Face Couplers: Included
  • Hydraulic Flat Face Couplers Spec: 1/2"
  • Number of Hydraulic Hoses: 2
  • Hydraulic Hoses Diameter: DN13

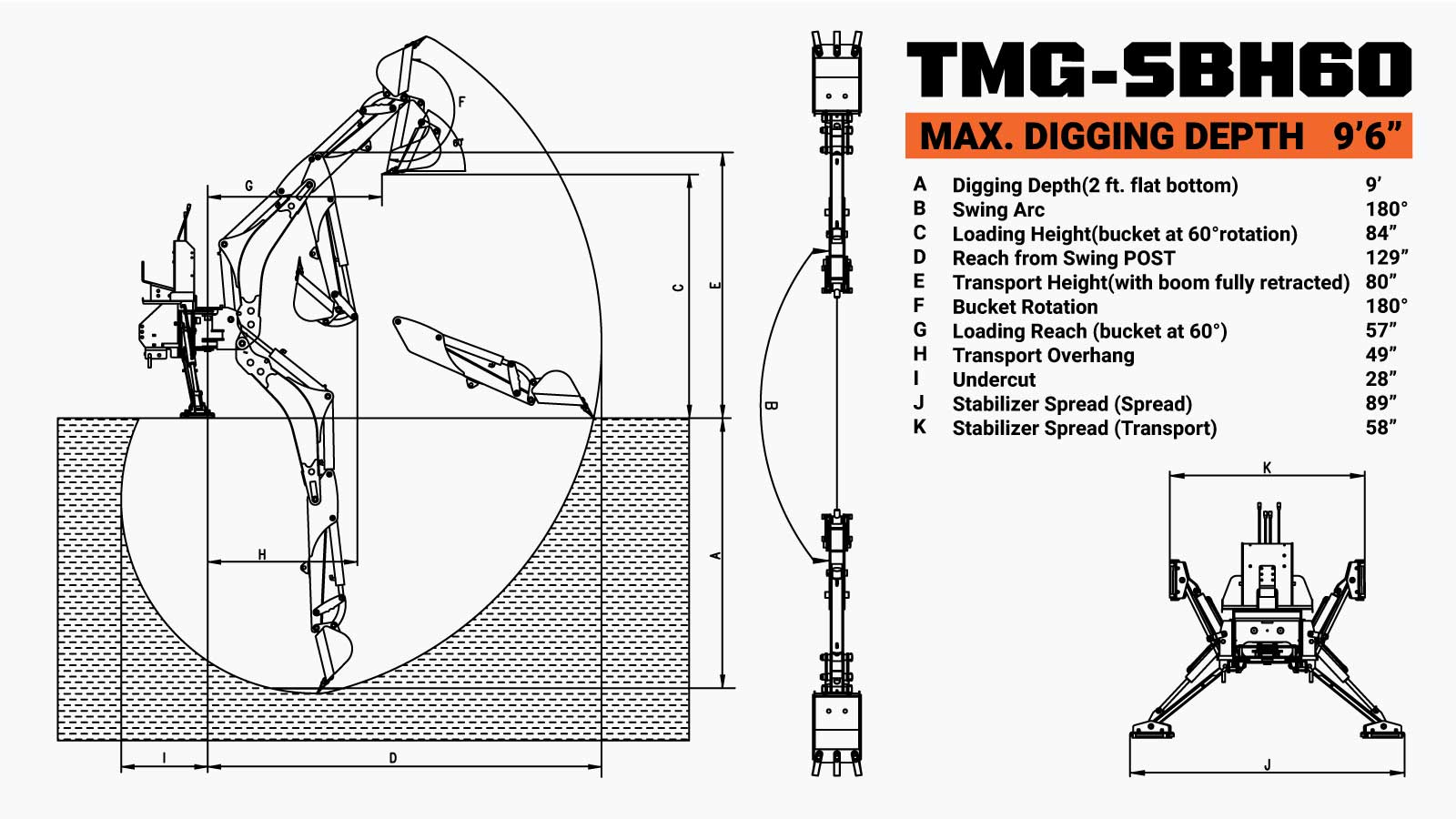

  • Bucket Rotation Degree: 180°
  • Swing Arc: 180°
  • Max. Digging Depth: 2740 mm (9')
  • Max. Working Height: 2120 mm (123")
  • Max. Working Length: 3275 mm (129")
  • Max. Loading Height: 2130 mm (84")
  • Stabilizer Width (Spread): 2360 mm (89")
  • Stabilizer Width (Transport): 1650 mm (58")
  • Ground Clearance: 250–305 mm (10"–12")
  • Bucket Size: 380 mm (15")
  • Bucket Capacity: 0.036 m³ (1.3 cu-ft)
  • Dipper Boom Digging Force: 960 kg (2200 lb)
  • Bucket Digging Force: 1460 kg (3210 lb)
  • Bucket and Boom Dig Simultaneously: Yes
  • Surface Finish: Powder coating
  • Overall Dimensions: 2300 × 1650 × 1700 mm (90.5" × 65" × 67")
  • Net Weight: 548 kg (1210 lb)
9' Skid Steer-graafmachine-aanbouwdeel met zwenkarm voor laders van 30-100 pk, 15

Product Description icon Product Description

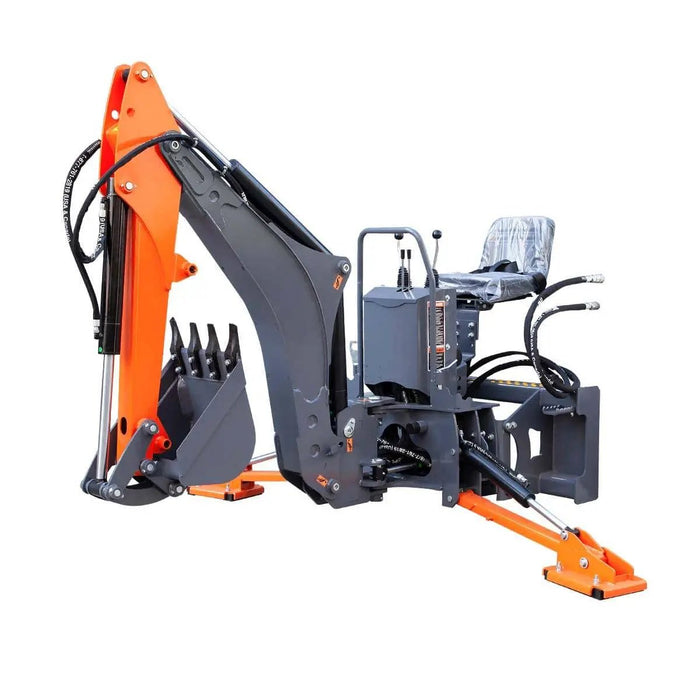

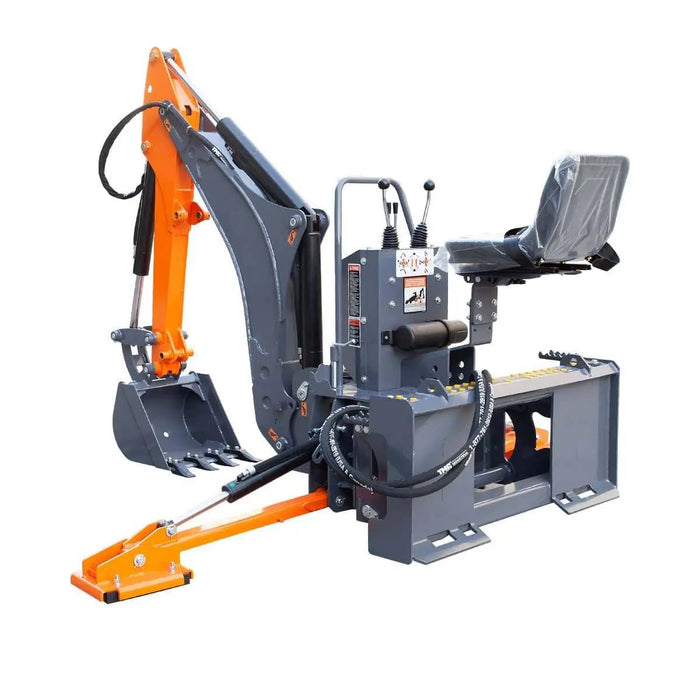

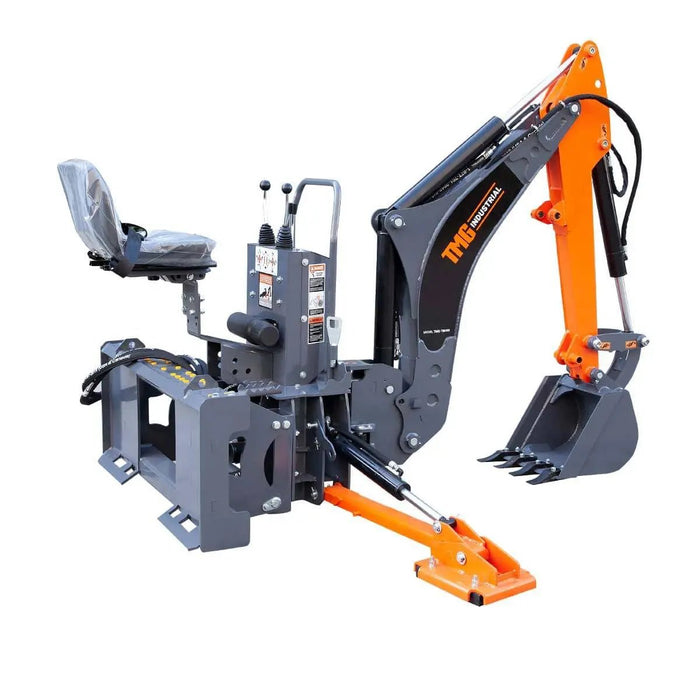

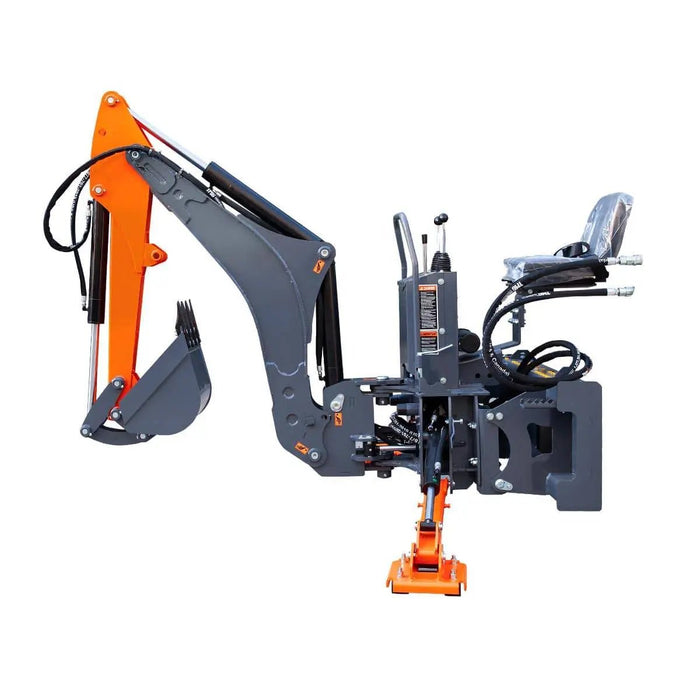

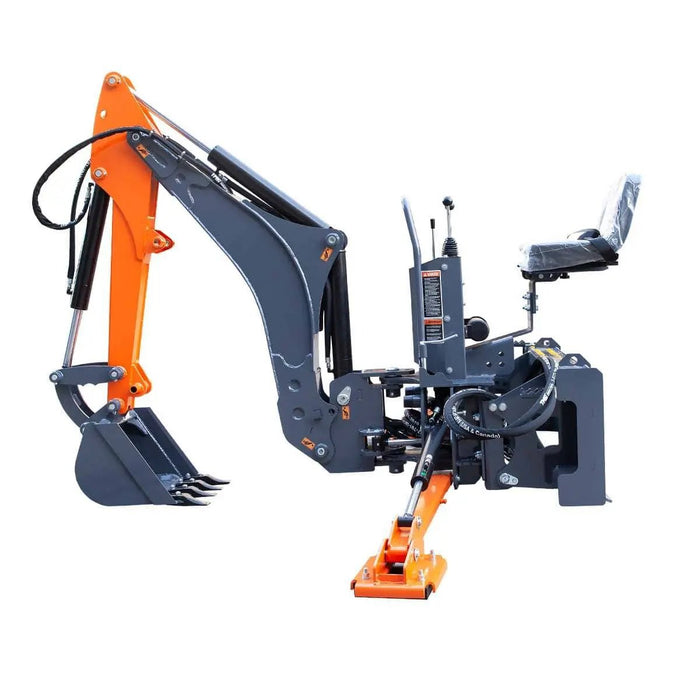

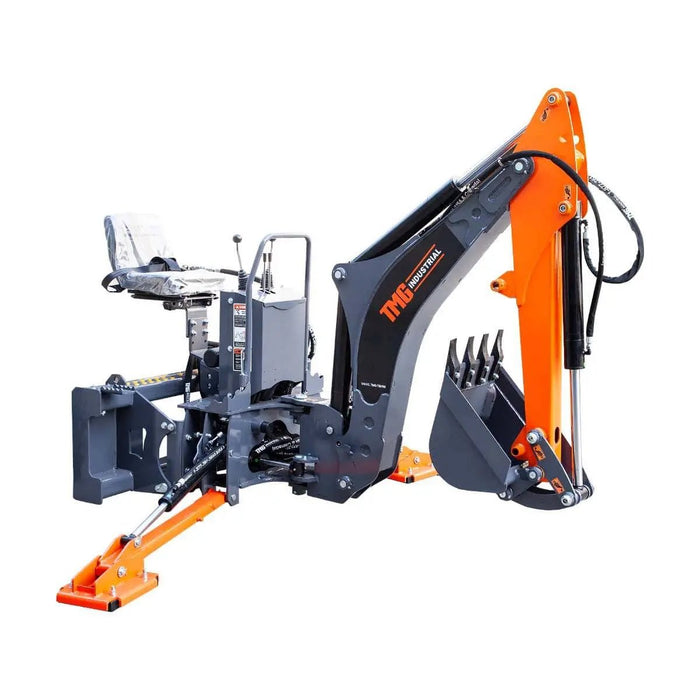

De TMG-SBH60 schranklader-graafmachine biedt een scala aan mogelijkheden voor uw graafprojecten. Dankzij het grote bereik en de 180° zwenkbare giek kunt u moeilijk bereikbare plekken bereiken zonder de machine te hoeven verplaatsen. Deze graafmachine is compatibel met schrankladers van 30 tot 100 pk en wordt geleverd met een 38 cm brede graafbak, perfect voor het graven van sleuven, het aanleggen van irrigatiesystemen, landschapsarchitectuur en meer.

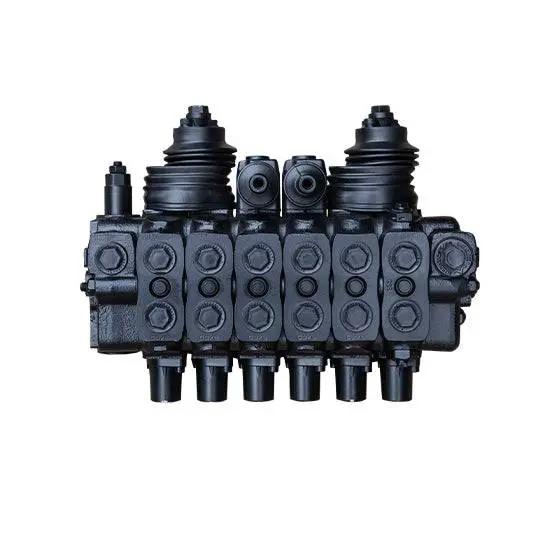

Deze graafmachine is voorzien van Italiaanse Hydro Control-kleppen die de verdeling van de hydraulische druk optimaliseren voor nauwkeurige timing en prestaties. De dubbele hydraulische cilinderarm en de bakkoppeling zijn ontworpen voor een hoge uitbreekkracht en graafvermogen en maken een bakrotatie van 180° mogelijk.

Onderhoud is eenvoudig dankzij vervangbare bussen, vervangbare, vast te schroeven gegoten tanden en smeernippels op alle draaipunten. De stabilisatiepoten zijn voorzien van verwijderbare/vervangbare rubberen beschermpads om schade aan gazons, asfalt en beton te voorkomen.

Shipping Information icon Shipping Information

The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances, processing and dispatch takes 2–3 business days. Estimated delivery time is 10–15 business days, depending on your location and site accessibility.

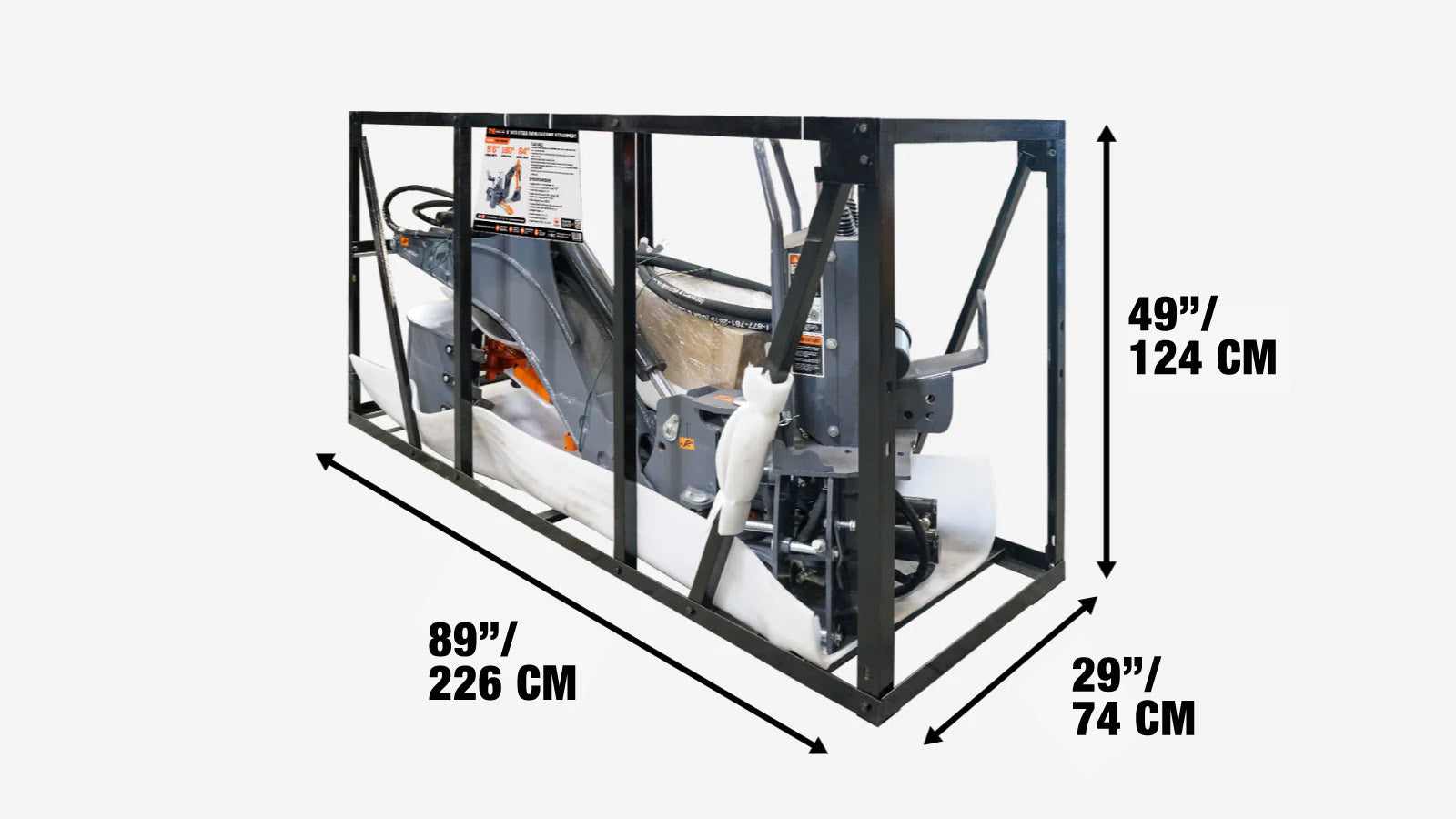

  • Packaging: Metal crate shipping box
  • Shipping dimensions: 226 × 74 × 124 cm (89 × 29 × 49 in) (L × W × H)
  • Shipping weight: 647 kg (1,425 lb)
Shipping from Rowville,VIC
What happens after you place your order?
9' Skid Steer-graafmachine-aanbouwdeel met zwenkarm voor laders van 30-100 pk, 15

Warranty icon Warranty

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy

Questions & Answers icon Questions & Answers

  • Q: What skid steer power is the TMG-SBH60 compatible with?
    A: It supports 30–100 HP skid steers.
  • Q: What bucket size is included?
    A: Comes standard with a 380 mm (15") digging bucket.
  • Q: How deep can this backhoe dig?
    A: Maximum digging depth is 2740 mm (9').
  • Q: What is the boom reach?
    A: The boom’s maximum reach is 3275 mm (129").
  • Q: What is the swing and rotation capacity?
    A: Boom swing range is 180°, and bucket rotation is 180°.
  • Q: What are the force ratings (digging / breakout)?
    A: Bucket digging force: 1460 kg (3210 lb). Excavating digging force: 960 kg (2200 lb).
  • Q: What is the warranty?
    A: It is backed by a 1-year manufacturer warranty covering defects in materials and workmanship. Customer support and spare parts are also available.
